Automatic Rain Gauge

To Get Product Price Request a Quote

Product Availability: In Stock

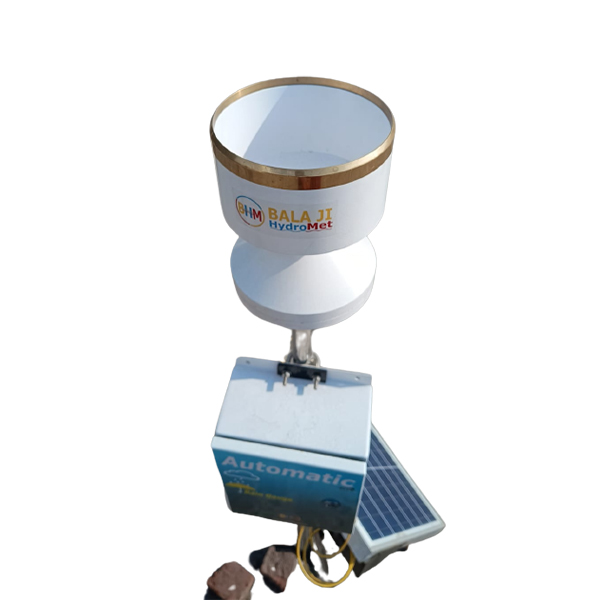

Automatic Rain Gauge Station having the industrial grade micro controller datalogger ensure the reliability, accuracy and continuous performance in the toughest weather condition. BHM make Automatic Rain Gauge is the best choice for the research works in the market. Design makes easy to installed by one person and reduce the transportation cost. Automatic rain gauge model BHM-Compact-ARG comes with the tripod stand, solar panel and battery case having the an intelligent solar and AC power circuit which make the system self-powered. 16 X 2 alphanumeric display and 1 X 4 keypad is provided at front of data logger for programming data logger and Rain Gauge sensor reading at site without the help of computer. The lithium on battery having the more than 2 years of life and < 10 days of the backup at no sunlight and extremely hardest weather condition.

Category : Rain Gauge
Model Number : BHM-Compact-ARG
Brand : Balaji Hydromet

Automatic Rain Gauge

Automatic Rain Gauge Station having the industrial grade micro controller datalogger ensure the reliability, accuracy and continuous performance in the toughest weather condition. BHM make Automatic Rain Gauge is the best choice for the research works in the market. Design makes easy to installed by one person and reduce the transportation cost. Automatic rain gauge model BHM-Compact-ARG comes with the tripod stand, solar panel and battery case having the an intelligent solar and AC power circuit which make the system self-powered. 16 X 2 alphanumeric display and 1 X 4 keypad is provided at front of data logger for programming data logger and Rain Gauge sensor reading at site without the help of computer. The lithium on battery having the more than 2 years of life and < 10 days of the backup at no sunlight and extremely hardest weather condition.

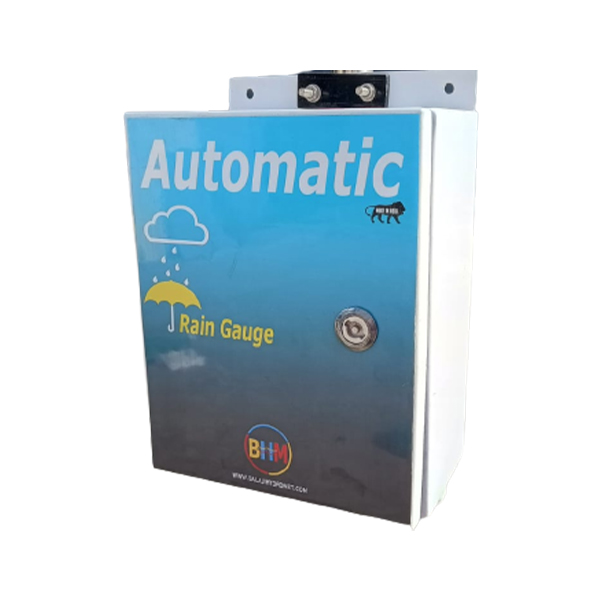

DATA LOGGER -VIEW

Model	Compact-datalogger version v-21.7
Display	16 Characters x 2 Lines alphanumeric display (Auto Light on when touch the keypad button)
Measured Parameter	Date, Time, Rainfall (mm), Logger Temperature (°C), Battery(volts)
Real Time Clock	Stability long-term: ±1 ppm / year Stability (temperature): ±3.5 ppm or better form -40° to 85°C
Logging Rate	1 min to 1 hours
Data Storage	16 GB (sufficient for more than 5 years of logging in 1 min. (logging rate)
Logger Power supply	5 volts
RTC Battery Life	< 5 years in continuous operation
Clock accuracy	±5 seconds per year
Keypad	1 x 4 on front of the datalogger programming and check the sensors Realtime reading
Logger Programming	Through given keypad in front of the logger
IP rating	IP 65
Operating Temp.	-40°C to 75 °C
Operation Humidity	0 to 95% no-condensing
Data Retrieval	SD Card and RS 485 (Optional) No need of any software direct copy and past
Data Transmission	GPRS telemetry OR WIFI in IOT (optional)
Watchdog timer	System Reset Upon Microprocessor Failure
Model	BHM-compact-BAT
Protection	Reverse Polarity Battery over Charge Protection Battery over Discharged Protection
Battery Charging	Provided Inbuild solar charging Circuit through Battery management System OR 220 volts AC supply (optional)
Battery Life	More than 2 years
Battery Voltage & Amp	5 volts and 20 AMP
Advance Feature	Soft Start Charging or good health of battery Battery Temperature measurement inside Disconnect charging when temperature of batter goes high than normal
Solar Pannel	6 volts 2 Amp
Output Voltage	5 Volts DC

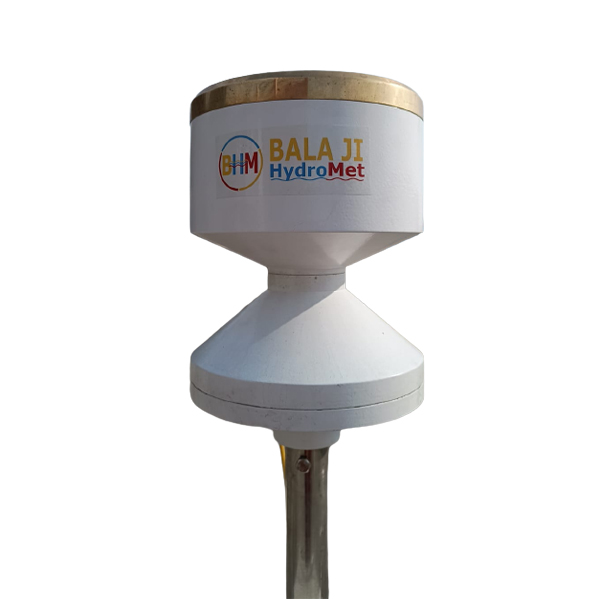

Type	Tipping Bucket
Diameter	159.60 mm
Accuracy of rain gauge	180 mm / hour, better than ± 4 %
Collection area	200 cm²
Design	Aerocon for remove the wind effect
Resolution	0.20 mm
Operating condition	0°C to +70 °C 0...100 %
Output	Switch Encloser
Material	Aluminium powder coated
Capacity Rim	Unlimited Chamfered edge Polished Gunmetal Rim
Collection Area Standard	As per IMD and WMO

• Hydrology

• General rainfall monitoring

• Rainfall distribution and intensity

• Remote monitoring

• Leachate/run-off monitoring

• Ecological studies

• Agriculture

• Climate change studies

• Classical meteorology and hydrology

• Agriculture meteorology

• Measuring networks of water suppliers

• Lysimeter systems

• Sewage plants

• Weather services

• Airports
