Automatic Open Pan Evaporation System

To Get Product Price Request a Quote

Product Availability: In Stock

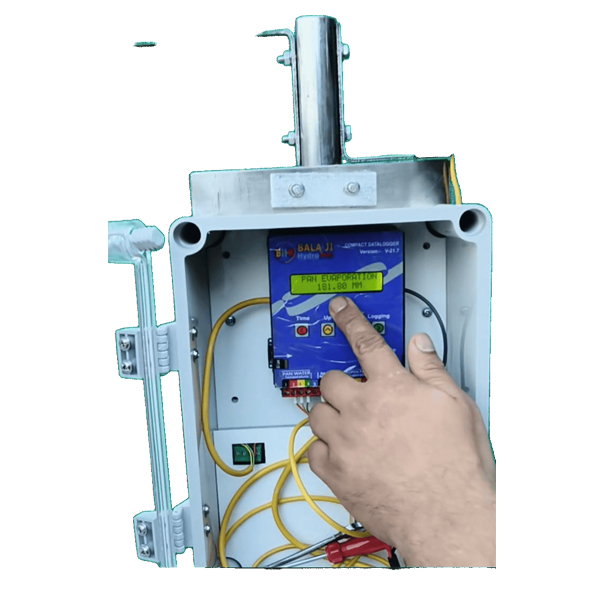

Automatic Open Pan Evaporation without refilling system features an industrial-grade microcontroller datalogger for reliable, accurate, and continuous performance in the toughest weather conditions. BHM Automatic Open Pan Evaporation is an ideal choice for research applications, environmental monitoring, and meteorological studies. With a 0–200 mm water level measurement range, the user can refill the pan before complete evaporation of water for uninterrupted observation.

Category : Evaporation Monitoring
Model Number : BHM-M-OPE-WRGI
Brand : Balaji Hydromet

Automatic Open Pan Evaporation System

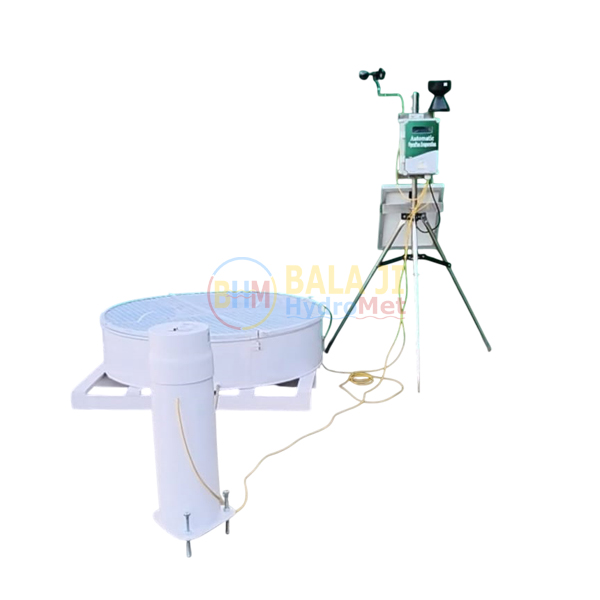

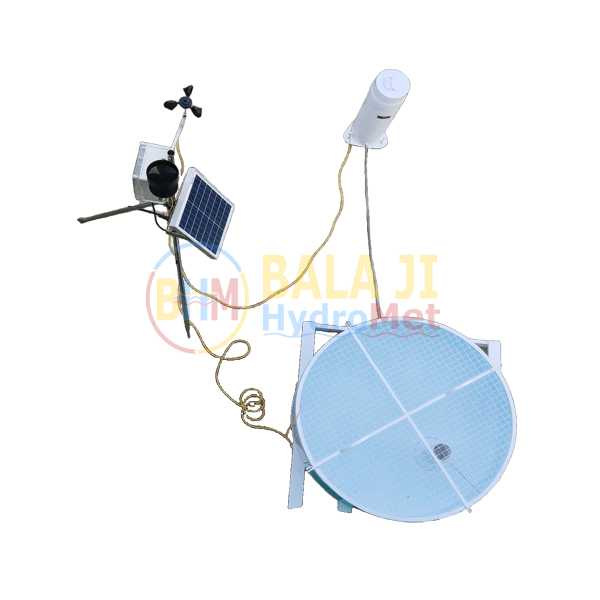

Automatic Open Pan Evaporation System with Rain Gauge & Wind Speed Sensor Balaji Hydromet Automatic Open Pan Evaporation System is a precision-engineered solution designed for accurate evaporation measurement in meteorological, agricultural, hydrological, and environmental research applications. Built with an industrial-grade microcontroller-based datalogger, the system ensures reliable performance, high accuracy, and continuous operation even in harsh outdoor weather conditions. This advanced evaporation monitoring system is equipped with a water level measurement range of 0–200 mm and is specially designed to help users observe and manage evaporation loss efficiently. The system allows timely refilling of the pan before complete water depletion, ensuring uninterrupted monitoring and dependable data collection. To improve the quality and usefulness of evaporation analysis, the system can also be integrated with a wind speed sensor and rain gauge sensor. These parameters play an important role in open pan evaporation studies. Wind speed directly affects the rate of evaporation by increasing the movement of air over the water surface, which accelerates moisture loss. Rainfall also has a direct influence on pan water level and evaporation readings, making rain measurement essential for accurate interpretation of collected data. By monitoring these additional weather parameters, the system provides more meaningful and scientifically useful evaporation data for research and field applications. The Balaji Hydromet Automatic Open Pan Evaporation System is an ideal choice for weather stations, agricultural universities, irrigation departments, climate monitoring projects, research institutions, and hydrological studies, where precise evaporation measurement and weather-based analysis are essential.

FOR COMPLETE SPECIFICATION CILCK TO DOWNLOAD TAB

Pan Material	GI (GALVANISED IRON) Indian Standard (5973-1998)
Data Logger (with GPRS TELEMERTY)	BHM-compact-DL
Stillwell with shaft and pully system	BHM-S-OPE-Shaft
Water Temperature Sensor	BHM-S-OPE-WT
Wind Speed Sensor	BHM-S-WS
Tipping Bucket Rain Gauge	BHM-S-TBRG-5

Meteorological observatories Agricultural universities and research centres Irrigation and water resource projects Hydrological and environmental monitoring Crop water requirement studies Evapotranspiration and climate studies Reservoir, canal, and lake water loss analysis Weather stations and field research laboratories Drought monitoring and agro-meteorology projects

Automatic Open Pan Evaporation without refilling system

Box number 1 (complete Datalogger with Sensors)	Weight(7.750 Kg), Dimension(42x48x25)cm³
Box number 2 (PAN Level Sensor Electronic still well for Pan)	Weight(10 kg), Dimension(32x32x70)cm³
BOX number 3 (SS Stand for open pan)	Weight(4.50 kg)Dimension(13x13x 127)cm³
BOX number 4 (Open Pan Evaporation)	Weight(60 kg),Dimension(132x132x46)cm³
