Water Current Meter (Cup type)

₹ 24999.00 ~~₹ 49999.00~~ 50%off

Product Availability: In Stock

The BHM-H-CM2 is manufactured for mechanical current-meter applications and is referenced to IS 3910:1992. It supports velocity-area discharge measurement workflows used for rivers, canals and open channels. The instrument is supplied with an individual calibration equation and calibration certificate, allowing measured revolutions to be converted into water velocity. It can be used with wading rods, suspension cables, hydrometric fish weights, bridge arrangements, digital revolution counters, velocity indicators and data loggers. For procurement or project submission, final compliance should be confirmed against the purchaser's exact technical schedule, required calibration authority, inspection procedure, environmental conditions and documentation format. Optional configurations or accessories should be listed separately in the commercial offer when requested.

Category : Water Current Meter
Model Number : BHM-H-CM02
Brand : Balaji Hydromet

Qty:

Water Current Meter (Cup type)

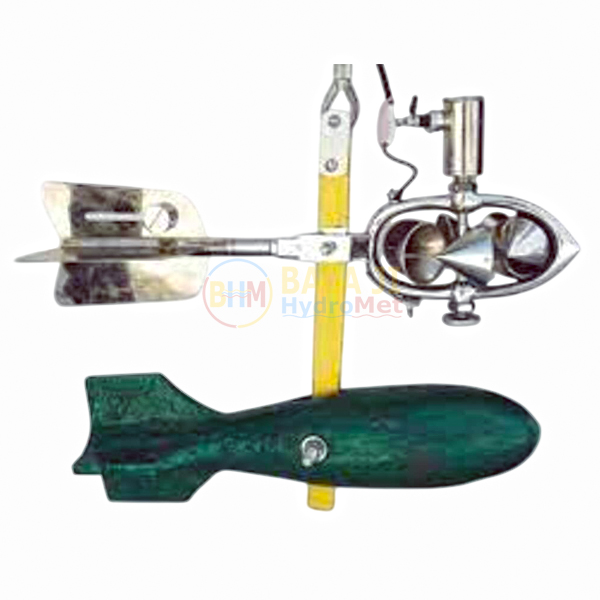

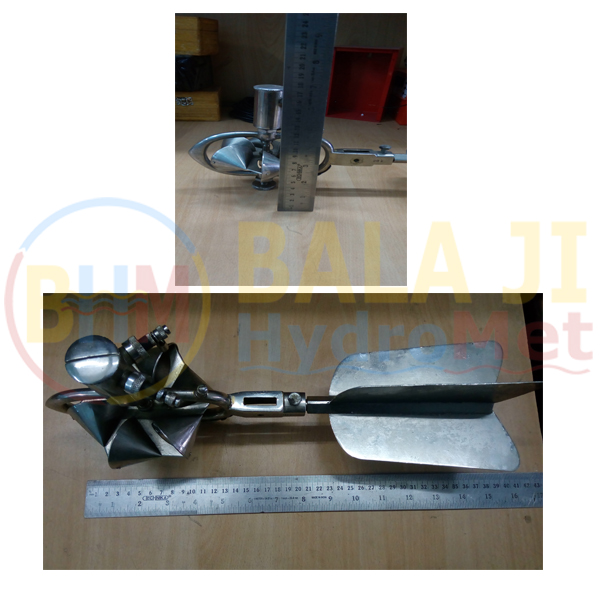

What is the BHM-H-CM2? It is a vertical-axis, six-cup water current meter used to measure water velocity in rivers, canals,streams and open channels.
How does it work? Flowing water rotates the cup wheel. A magnetic reed-switch or fibre-optic sensor produces one pulse per revolution, and velocity is calculated using the supplied calibration equation.
Where is it used? It is used for river discharge measurement, canal monitoring, stream gauging, hydrological surveys, irrigation engineering, reservoir studies and hydraulic laboratories.
What is the measuring range? The stated operating range is 0.30 m/s to 3.50 m/s, with a starting velocity of 0.015 m/s.
What comes with the instrument? The standard supply includes the current meter, 1.20 m wading rod, 10 m signal cable, 10 m suspension cable, 10 kg fish weight, calibration documents, tools and user manual.
Who manufactures it? The BHM-H-CM2 is manufactured by Balaji HydroMet, India, for hydrological and water-resources field measurement applications.

Brand	Balaji HydroMet (BHM)
Model	BHM-H-CM2
Standard Reference	IS 3910:1992
Type	Vertical Axis Cup Type Water Current Meter
Body Material	Chrome-plated brass
Spindle Material	Stainless steel
Sensor Type	Magnetic reed switch / fibre-optic option
Contact Output	One pulse per complete revolution
Starting Velocity	0.015 m/s
Operating Range	0.30 m/s to 3.50 m/s
Accuracy	±1% FS up to 0.30 m/s; ±0.5% FS above 0.30 m/s
Bucket Open-End Diameter	2.0 inch
Bucket Diameter	0.5 inch
Spin Test Rating	Greater than 75 seconds
Output Signal	Pulse output
Flow Alignment	Tailpiece assembly for automatic alignment
Deployment	Wading rod, suspension cable, fish weight, bridge or overhead arrangement

River velocity measurement

Stream flow and discharge measurement

Canal and irrigation-flow monitoring

Open-channel flow measurement

Hydrological surveys and stream gauging

Reservoir inflow and drainage studies

Hydraulic laboratories and research projects

Flood and watershed monitoring

Government water-resource departments

Box number 2	Cup Type Water Current meter Direct velocity indicator/logger Connection cable 10 meter Calibration certificate Wadding rod holder WADDING ROD WITH BASE PALTE Oil and tool set Weight 7.750 kg Dimension 47x27x20 cm³ Or 18.5x10.5x8 inch³
Box number 3	Cup Type Water Current Meter Fish Weight Suspension cable 10 meter Fish weight Nut & bolt and clip Fish weight bar weight 12.800 kg Dimension 46x14x21 cm³ Or 18x5.5x8 inch³
