Water Current Meter (Propeller type)
The Balaji HydroMet BHM-H-CM01 measures water velocity and discharge in rivers, canals, streams and hydraulic structures. Each propeller rotation generates an electrical pulse, converted into direct velocity readings in m/s.A propeller water current meter is a mechanical hydrological instrument used to measure the velocity and discharge of flowing water in rivers, streams, and open channels. It relies on a rotating propeller to capture fluid velocity, outputting data proportional to the water's flow rate
- Category : Water Current Meter
- Model Number : BHM-H-CM01
- Brand : Balaji Hydromet
-
Water Current Meter (Propeller type)
Accurate River, Canal & Stream Flow Measurement Instrument
The Balaji Hydromet Propeller Type Water Current Meter (BHM-H-CM01) is a high-precision hydrological instrument designed for measuring water velocity and discharge in rivers, canals, streams, irrigation channels, reservoirs, and hydraulic structures. Manufactured to meet the requirements of hydrological survey organizations, irrigation departments, research institutions, and environmental monitoring agencies, the BHM-H-CM01 delivers reliable and repeatable velocity measurements under diverse field conditions.

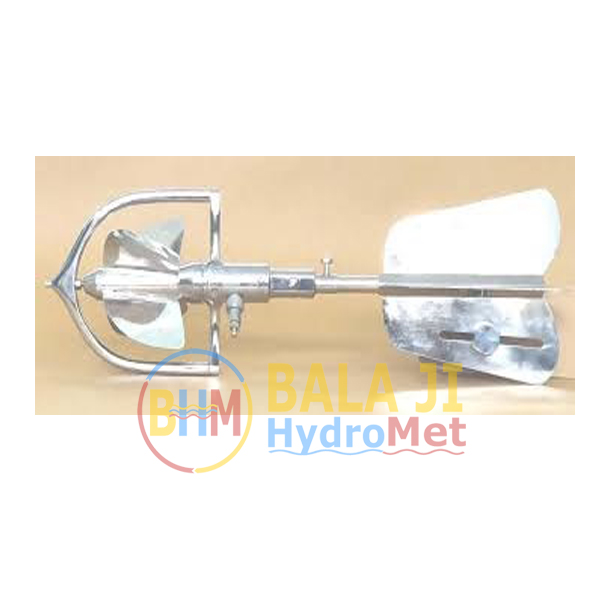

The instrument operates on the proven propeller current meter principle, where flowing water rotates a precision-balanced propeller mounted on a stainless-steel spindle. Each propeller rotation generates an electrical pulse through a magnet and reed switch assembly. These pulses are processed by the Digital Velocity Indicator/Logger (DVI-v1), which converts rotational data into accurate water velocity values expressed in meters per second (m/s).

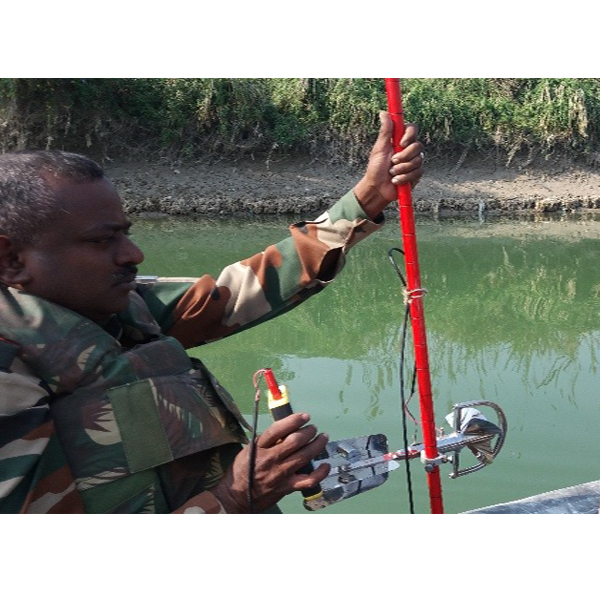

Suitable for both wading and suspension measurements, the BHM-H-CM01 is widely used for stream gauging, discharge determination, river cross-section surveys, flood monitoring, irrigation water management, hydrological investigations, and water resources development projects throughout India and internationally.
-
Model BHM-H-CM01 Type Propeller Type Water Current Meter Measuring Principle Magnet and reed-switch pulse generation Construction Chrome-plated brass body; stainless-steel spindle Propeller Corrosion-resistant engineering material Operating Velocity Range 0.30 m/s to 3.50 m/s Starting Velocity £ 0.25 m/s Accuracy ±0.5% full scale for velocity > 0.30 m/s Output / Sensor One pulse per revolution / magnetic reed switch Calibration Equation User programmable Display Unit m/s (meters per second) Measurement Method Wading rod or suspension method Operating Temperature 0°C to 50°C Storage Temperature -10°C to 60°C Protection Suitable for fresh-water applications Standard Compliance IS 3910 and accepted stream-gauging practices Typical Applications Rivers, canals, streams, reservoir outlets and surveys -
River Flow MeasurementCanal Discharge MeasurementStream Velocity MonitoringIrrigation Water ManagementHydrological SurveysFlood Monitoring ProgramsWatershed StudiesReservoir Inflow MeasurementWater Resources Engineering projects
-

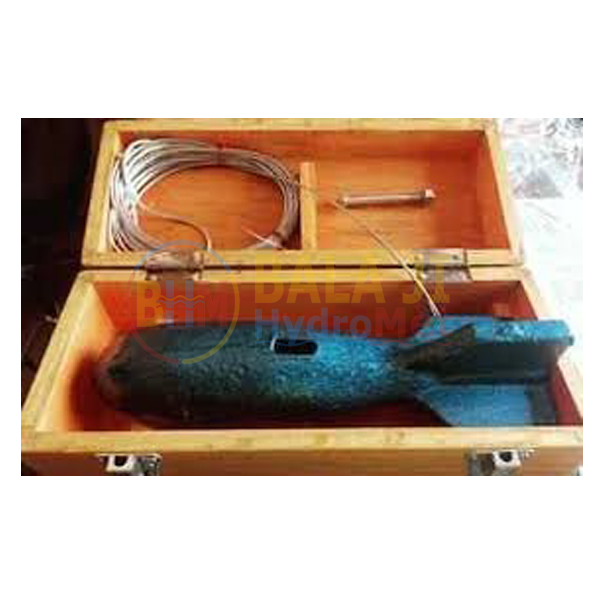

Box number 1 Propeller Water Current meter Direct velocity indicator/logger Connection cable 10 meter Calibration certificate Wadding rod holder Oil and tool set Ok Weight7.750 Kg.Dimension 59 X 22.5 X18.5 cm³ Box number 2 Current Meter Fish Weight Suspension cable 10 meter Wading rod with base plate Fish weight Nut & bolt and clip Fish weight bar OK Weight 15 Kg Dimension 53 x 20 x 17.5 cm³
